EIFS & Stucco Mesh Buying Guide: Adhesive vs. Standard Mesh, Weights & Sizes
EIFS and stucco mesh is used to reinforce wall surfaces, base coats, patches, seams, corners and repair areas. The right mesh depends on the application, mesh weight, roll width and whether you need standard mesh or self-adhesive mesh for easier positioning.
This guide explains how to choose between standard EIFS / stucco mesh, self-adhesive EIFS / stucco mesh, 4.5 oz mesh, 9 oz mesh, 14 oz mesh and 19 oz mesh.
Grextor EIFS and stucco mesh is made from alkali-resistant fiberglass mesh, is available in true roll sizes, and is designed for indoor and outdoor wall reinforcement applications. Current options are white.
EIFS and stucco mesh should be selected and installed according to the wall system manufacturer’s requirements, base coat instructions, local requirements and project specifications. Always confirm the required mesh weight, roll width, adhesive style and installation method before use.
Quick Answer: Which EIFS or Stucco Mesh Should I Choose?
- Choose 4.5 oz standard EIFS / stucco mesh for general wall reinforcement, base coat applications and larger field areas.
- Choose self-adhesive EIFS / stucco mesh when you want the mesh to help hold in place during installation, especially for patches, seams, corners and detail work.
- Choose 9 oz mesh when you need more reinforcement than standard 4.5 oz mesh.
- Choose 14 oz mesh for heavy-duty reinforcement and higher-impact wall areas.
- Choose 19 oz mesh for ultra-heavy-duty reinforcement or project-specified high-impact zones.
- Choose narrow rolls such as 4.5 in., 9.5 in. or 19 in. for seams, cracks, patches, corners and detail areas.
- Choose wide rolls such as 38 in. or 48 in. for larger wall sections and field coverage.
If your main goal is general wall reinforcement, start with 4.5 oz standard mesh. If your main goal is patching, seams or detail work, self-adhesive mesh or narrow-width mesh may be easier to work with.
Grextor tip: Choose mesh by application first, then weight and width. A full-width wall mesh may be the right choice for field coverage, while a narrow self-adhesive strip may be better for small repairs and detail areas.
Standard Mesh vs. Self-Adhesive Mesh
| Mesh type | Best use | Why choose it |
|---|---|---|
| Standard EIFS / Stucco Mesh | Wall reinforcement, base coat embedding and larger field areas | Common choice for general EIFS and stucco reinforcement |
| Self-Adhesive EIFS / Stucco Mesh | Patches, cracks, seams, corners, edges and repair areas | Self-adhesive backing helps hold mesh in place during installation |
Self-adhesive mesh is designed to help position the mesh before it is embedded. The adhesive backing does not replace proper base coat, coating, embedding or system installation requirements.
EIFS & Stucco Mesh Weight Comparison
| Mesh weight | Common name | Best use |
|---|---|---|
| 4.5 oz | Standard Mesh | General EIFS / stucco reinforcement, base coat applications, wall coverage and standard repairs |
| 9 oz | Medium-Weight Mesh | Added reinforcement where more strength is needed than standard 4.5 oz mesh |
| 14 oz | Heavy-Duty Mesh | Heavy-duty reinforcement, higher-impact areas and project-specified applications |
| 19 oz | Ultra Heavy-Duty Mesh | High-impact zones, stronger reinforcement areas and demanding project requirements |
Mesh weight affects how much reinforcement the mesh provides. Heavier mesh is generally used where stronger reinforcement or higher impact resistance is needed, while lighter mesh is commonly used for general wall coverage and standard base coat reinforcement.
Best Mesh by Buyer Type
| Buyer type | Best starting point |
|---|---|
| EIFS contractor | 4.5 oz full-width mesh for field coverage; heavier mesh where specified |
| Stucco contractor | Standard mesh for wall reinforcement; self-adhesive mesh for patches and detail areas |
| Repair contractor | Self-adhesive 4.5 in., 9.5 in. or 19 in. mesh strips |
| Commercial project buyer | Confirm mesh weight, width and project specifications before ordering |
| Facility maintenance team | Narrow self-adhesive mesh for repairs; wider mesh for larger wall sections |
| Bulk buyer | Choose by mesh weight, roll width, adhesive style, total coverage and project requirements |
What Is 4.5 oz EIFS / Stucco Mesh?
4.5 oz EIFS / stucco mesh is the standard reinforcing mesh option for many base coat, wall reinforcement and repair applications. It is a good starting point for general EIFS and stucco work where standard reinforcing mesh is needed.
Grextor 4.5 oz mesh is available in standard and self-adhesive options, with narrow rolls for detail work and wider rolls for wall coverage.
Best uses for 4.5 oz mesh
- Standard EIFS base coat reinforcement
- Exterior stucco reinforcement
- Interior wall repair
- Exterior wall repair
- Patch reinforcement
- Crack repair reinforcement
- Seams and joints
- Corners and edges
- General wall coverage
- Field mesh applications
4.5 oz mesh options
- 4.5 oz Self-Adhesive EIFS / Stucco Mesh, 4.5 in. x 150 ft.
- 4.5 oz Standard EIFS / Stucco Mesh, 9.5 in. x 150 ft.
- 4.5 oz Self-Adhesive EIFS / Stucco Mesh, 9.5 in. x 150 ft.
- 4.5 oz Self-Adhesive EIFS / Stucco Mesh, 19 in. x 150 ft.
- 4.5 oz Standard EIFS / Stucco Mesh, 38 in. x 150 ft.
- 4.5 oz Self-Adhesive EIFS / Stucco Mesh, 38 in. x 150 ft.
- 4.5 oz Standard EIFS / Stucco Mesh, 48 in. x 150 ft.
Shop 4.5 oz EIFS / Stucco Mesh
What Is Self-Adhesive EIFS / Stucco Mesh?
Self-adhesive EIFS / stucco mesh includes a self-adhesive backing that helps hold the mesh in place during installation. This can be helpful for patches, cracks, seams, corners, edges, repairs and smaller detail areas where positioning the mesh may be difficult.
The self-adhesive backing is a placement aid. The mesh still needs to be installed and embedded according to the wall system, base coat and project requirements.
Best uses for self-adhesive mesh
- Patch reinforcement
- Crack repair
- Seams and joints
- Corners and edges
- Detail areas
- Repair work
- Small wall sections
- Areas where holding mesh in place helps during installation
Self-adhesive mesh options
- 4.5 oz Self-Adhesive EIFS / Stucco Mesh, 4.5 in. x 150 ft.
- 4.5 oz Self-Adhesive EIFS / Stucco Mesh, 9.5 in. x 150 ft.
- 4.5 oz Self-Adhesive EIFS / Stucco Mesh, 19 in. x 150 ft.
- 4.5 oz Self-Adhesive EIFS / Stucco Mesh, 38 in. x 150 ft.
Shop Self-Adhesive EIFS / Stucco Mesh
What Is 9 oz EIFS / Stucco Mesh?
9 oz EIFS / stucco mesh is a medium-weight reinforcing mesh used when more reinforcement is needed than standard 4.5 oz mesh. It is often selected for stronger wall reinforcement, higher-wear areas or project-specified applications.
Best uses for 9 oz mesh
- Medium-duty wall reinforcement
- Areas needing more strength than 4.5 oz mesh
- Commercial wall sections
- Higher-wear wall areas
- Project-specified reinforcement
- EIFS and stucco base coat applications where 9 oz mesh is required
9 oz mesh option
What Is 14 oz EIFS / Stucco Mesh?
14 oz EIFS / stucco mesh is a heavy-duty reinforcing mesh used for stronger reinforcement and higher-impact areas. It is a good choice when the project requires more reinforcement than standard or medium-weight mesh.
Best uses for 14 oz mesh
- Heavy-duty wall reinforcement
- Higher-impact areas
- Commercial wall applications
- Base coat reinforcement where stronger mesh is specified
- EIFS and stucco projects requiring heavy-duty mesh
14 oz mesh option
What Is 19 oz EIFS / Stucco Mesh?
19 oz EIFS / stucco mesh is an ultra heavy-duty reinforcing mesh used for high-impact zones, stronger reinforcement areas and project-specified applications. It is the heaviest mesh option in this guide.
Best uses for 19 oz mesh
- Ultra heavy-duty wall reinforcement
- High-impact zones
- Commercial and institutional wall areas
- Base coat reinforcement where 19 oz mesh is specified
- Demanding EIFS and stucco applications
19 oz mesh option
What Roll Width Do I Need?
Roll width affects how efficiently the mesh covers the work area. Narrow rolls are easier to use for detail work, while wider rolls are better for larger wall areas.
| Roll width | Best use |
|---|---|
| 4.5 in. | Cracks, seams, corners, edges and small patch areas |
| 9.5 in. | Repairs, seams, larger cracks, detail work and patch reinforcement |
| 19 in. | Larger repair areas, wide seams and partial wall sections |
| 38 in. | Wall sections, base coat reinforcement and general field coverage |
| 48 in. | Full-width wall coverage and larger field applications |
Grextor tip: Wider rolls can reduce seams on larger wall areas, while narrower rolls can be easier to handle for repair and detail work.

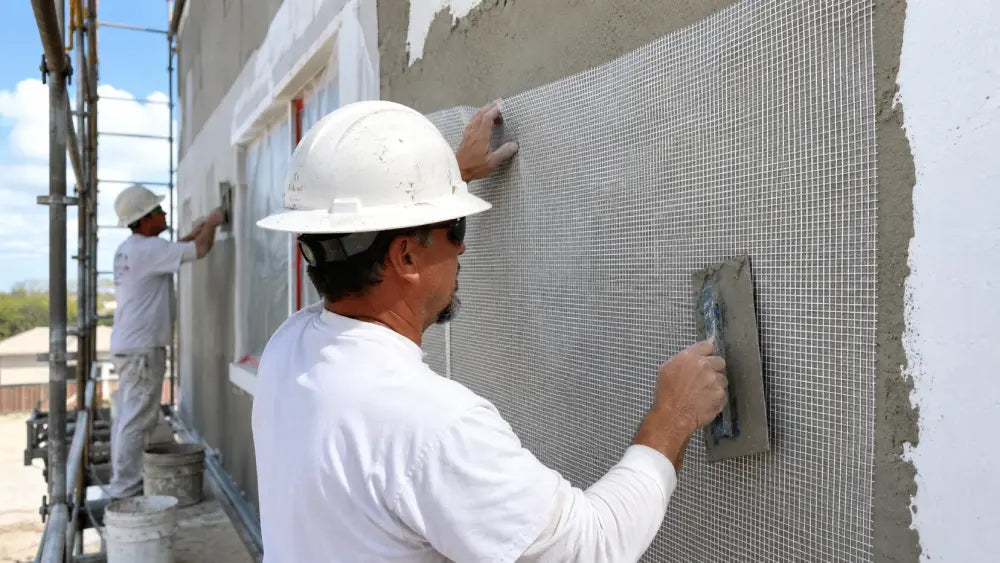

How Is EIFS or Stucco Mesh Installed?
EIFS and stucco mesh is typically embedded into a base coat or coating layer according to the wall system and project instructions. The exact method depends on the EIFS or stucco system being used.
General installation considerations include:
- Confirm the required mesh weight and width before starting
- Use standard or self-adhesive mesh based on the application
- Embed the mesh into the base coat according to the system manufacturer’s instructions
- Overlap seams as required by the wall system or project specifications
- Use narrow mesh for details, corners, cracks and patches
- Use wider mesh for larger field areas and wall coverage
Grextor tip: Self-adhesive mesh can make positioning easier, but the reinforcement still depends on proper embedding and installation.
Common EIFS & Stucco Mesh Applications
EIFS and stucco mesh can be used in many wall reinforcement and repair applications, including:
- EIFS base coat reinforcement
- Exterior stucco reinforcement
- Interior wall repair
- Exterior wall repair
- Patch reinforcement
- Crack repair reinforcement
- Seams and joints
- Corners and edges
- Detail work
- Base coat applications
- Wall resurfacing projects
- Commercial wall reinforcement
- Residential wall repair
- High-impact wall zones when heavier mesh is specified
What Should Bulk Buyers Consider?
For contractors, distributors, commercial buyers and project teams, the right EIFS or stucco mesh depends on more than just roll size. Consider:
- Required mesh weight
- Standard vs. self-adhesive mesh
- Roll width and roll length
- Total wall coverage or repair area
- Base coat and wall system requirements
- Project specifications
- Whether multiple mesh weights are needed on the same job
- Case, pallet or project-based quantities
For large projects, confirm whether the job requires standard 4.5 oz mesh, medium-weight 9 oz mesh, heavy-duty 14 oz mesh, ultra heavy-duty 19 oz mesh or a combination of mesh weights.
Grextor can help with bulk quantities across standard EIFS mesh, self-adhesive stucco mesh, narrow detail rolls and full-width wall mesh.
Common Buying Mistakes
Choosing by roll width only
Roll width matters, but mesh weight and application are just as important.
Using detail mesh for large wall areas
Narrow mesh is useful for repairs and seams, but wider rolls are usually better for larger wall sections.
Using standard mesh where self-adhesive mesh would help
Self-adhesive mesh can make positioning easier for patches, cracks, corners and detail work.
Assuming adhesive replaces proper embedding
Self-adhesive backing helps hold mesh in place during installation, but it does not replace proper base coat embedding or system requirements.
Ignoring project specifications
EIFS and stucco mesh should be selected according to the wall system, base coat and project requirements.
Frequently Asked Questions
What is EIFS and stucco mesh used for?
EIFS and stucco mesh is used for wall reinforcement, base coat reinforcement, patching, crack repair, seams, corners, edges and detail areas.
What is the difference between standard and self-adhesive EIFS mesh?
Standard mesh is commonly used for general wall reinforcement and base coat applications. Self-adhesive mesh has a backing that helps hold the mesh in place during installation, especially for patches, seams and detail areas.
Does self-adhesive mesh replace base coat?
No. The adhesive helps hold the mesh in place during installation, but the mesh still needs to be installed and embedded according to the wall system and project requirements.
What is 4.5 oz stucco mesh used for?
4.5 oz stucco mesh is commonly used for standard EIFS and stucco reinforcement, base coat applications, wall coverage, patching and general repair work.
When should I use 9 oz mesh?
Use 9 oz mesh when more reinforcement is needed than standard 4.5 oz mesh or when the project specifies medium-weight mesh.
When should I use 14 oz or 19 oz mesh?
Use 14 oz or 19 oz mesh for heavy-duty reinforcement, high-impact areas or project-specified applications.
What roll width should I choose?
Use narrow rolls such as 4.5 in., 9.5 in. or 19 in. for seams, cracks, corners and patching. Use 38 in. or 48 in. rolls for larger wall areas and field coverage.
Is the mesh alkali resistant?
Yes. Grextor EIFS and stucco mesh is made from alkali-resistant fiberglass mesh.
Can EIFS mesh be used indoors and outdoors?
Yes. The mesh can be used for indoor and outdoor wall reinforcement applications when installed according to the project and wall system requirements.
Are the listed sizes true sizes?
Yes. The sizes in this guide are treated as true sizes.
Shop by EIFS & Stucco Mesh Type
Standard EIFS / Stucco Mesh
Choose standard EIFS / stucco mesh for general wall reinforcement, base coat applications and larger field areas.
Shop Standard EIFS / Stucco Mesh
Self-Adhesive EIFS / Stucco Mesh
Choose self-adhesive EIFS / stucco mesh for patches, seams, cracks, corners, edges and detail work where easier placement is helpful.
Shop Self-Adhesive EIFS / Stucco Mesh
Heavy-Duty EIFS / Stucco Mesh
Choose 9 oz, 14 oz or 19 oz EIFS / stucco mesh for stronger reinforcement, high-impact areas and project-specified applications.
Shop Heavy-Duty EIFS / Stucco Mesh
Need Help Choosing?
Tell the Grextor team:
- Whether you need standard or self-adhesive mesh
- The required mesh weight
- The roll width and total coverage area
- Whether the project is EIFS, stucco, patching, repair or detail work
- Whether the order is for residential, commercial, contractor or bulk use
- Whether you need case, pallet or project-based quantities
We can help narrow down the right EIFS / stucco mesh weight, roll width and adhesive style for your project.
